Iron AC GearMotor

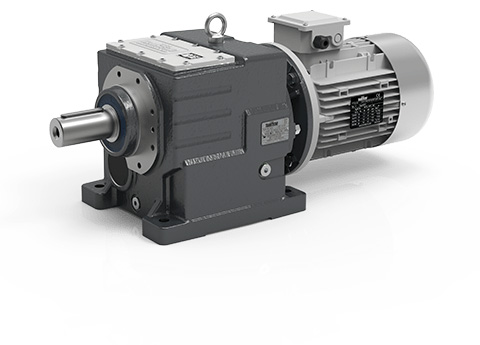

Helical in-line gearmotors ITH

Helical inline gear reducers with cast iron housing designed for industrial applications with high loads; the catalog of ITH cast iron coaxial gear reducers.

Pn	M2	i
0.09 - 5.5 ㎾	2 - 655 ㎚	3.7 - 398.3

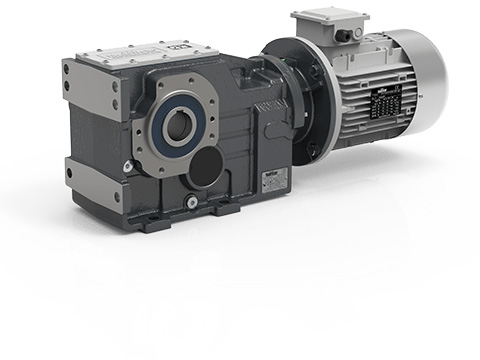

Helical bevel gearmotors ITB

Helical bevel gear reducers with cast iron housing and modularity typical of TRANSTECNO gear reducers; 3 sizes up to 3500 Nm, the ITB cast iron helical bevel gear reducer catalog.

Pn	M2	i
0.09 - 5.5 ㎾	5 - 624 ㎚	6.2 - 262

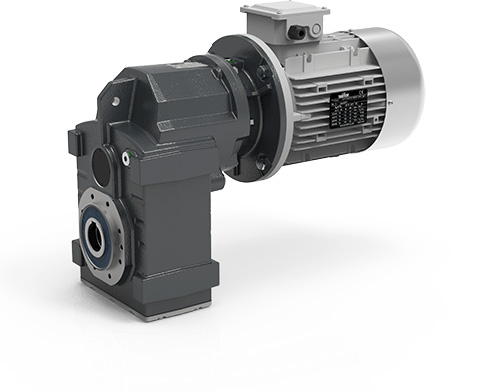

Helical parallel gearmotors ITS

Parallel shaft gear reducers with two types of cast iron frame, universal or pendant; 3 sizes of speed reducer, up to 3200 Nm, download the ITS cast iron parallel shaft gear reducer catalog here.

Pn	M2	i
0.12 - 5.5 ㎾	10 - 700 ㎚	5.87 - 386.5
